Factory Layout

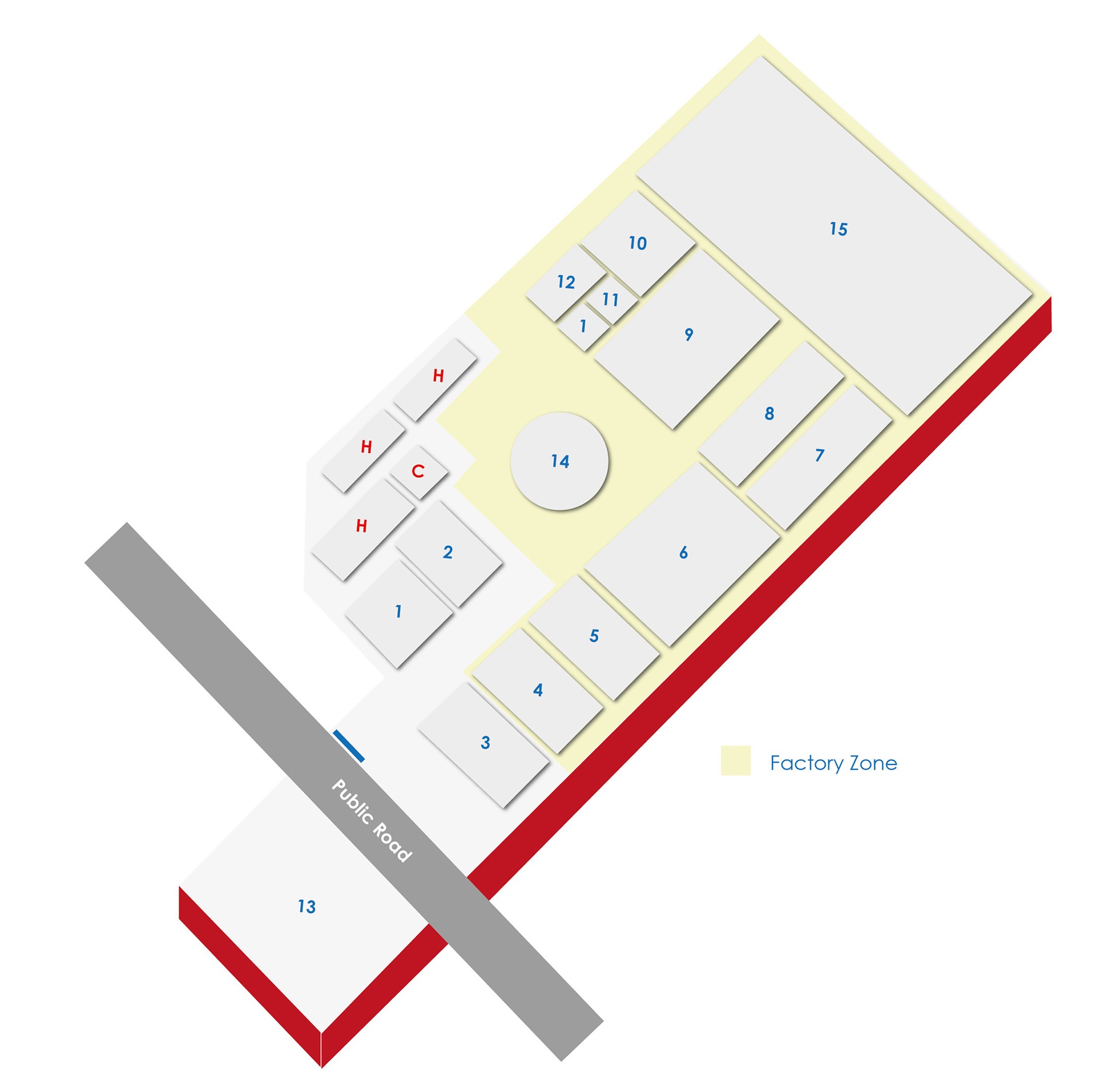

1. Office 2. Car Park 3. Car Park 4. Stock Yard 2 5. Stock Yard 1 6. Fabrication Yard 7. Ware House 8. Material Storage Yard 9. Indoor Fabrication Workshop

10. Machining Shop 11. Tool Store 12. Maintenance Area 13. Ware House 14. Tower Crane 15. Fabrication Yard C = Canteen H = Residential House

Equipment Specification Quantity
1. Cutting Equipment
    1.1 Automatic Cutting Machine - 2
    1.2 Concrete Cutting Machine 3100x6 mm THK 2
    1.3 Gas Cutting Torch - 15
    1.4 Steel Bar Cutting Machine 32 mm. DIA 2
2. Form Equipment
    2.1 3-Roll Plate Bending Machine 2400x32 mm THK 1
    2.2 3-Roll Plate Bending Machine 1500x12 mm THK 1
    2.3 Pipe Bending Machine 400 mm. DIA 1
    2.4 Press Breaker 350 ton, 3000 mm. 1
    2.5 Press Breaker 120 ton, 3000 mm. 1
    2.6 Bending Machine mm x3.1 m 1
    2.7 Shearing Machine 6mm x 3.1 m 2
    2.8 Steel Bar Bending Machine 32 mm. DIA 2
    2.9 Tube/Pipe Bending Machine 65 mm DIA 1
3. Drill Equipment
    3.1 Eccentric Punching Machine 60 ton 1
    3.2 Hand Drilling Machine 20 mm. DIA 6
    3.3 Magnetic Based Drilling Machine 32 mm. DIA 2
    3.4 Milling Machine 600 mm. Stroke 1
4. Finishing Equipment
    4.1 Concrete Grinding Machine - 8
    4.2 Hand Grinding Wheel 00-175 mm. DIA 80
    4.3 Lathe 600 mm. x 3600m.long 1
    4.4 Lathe 400 mm. x 2000m.long 1
    4.5 Lathe 400 mm. x 1200m.long 1
    4.6 Shaping 700 mm. Stroke 2
    4.7 Radial Drilling Machine 50 mm. DIA 1
    4.8 Radial Drilling Machine 38 mm. DIA 1
    4.9 Grinding Wheel 300 mm. DIA 2
    4.10 Grinding Wheel 180 mm. DIA 2
5. Welding Equipment
    5.1 Arc Welding Machine 300 Amp. 80
    5.2 Arc Welding Machine 500 Amp. 10
    5.3 TIG Welding Machine 500 Amp. 2
    5.4 MIG Welding Machine 500 Amp. 4
    5.5 DC Generator Welding Machine 300 Amp. 2
    5.6 Grouting Machine 500 Amp. 4
6. Surface Preparation
    6.1 Sand Blasting Machine 175 KW 1
7. Painting
    7.1 Airless Spray - 2
    7.2 Compressed Air Spray - 6
8. Surveying
    8.1 Theodolite (line) - 2
    8.2 Leveling - 4
9. Concrete Equipment
    9.1 Vibrator Wire - 6
    9.2 Vibrator Packer - 4
    9.3 Mixer - 3
    9.4 Form Work - 1000SQM
    9.5 Concrete Breaker - 2
    9.6 Scaffold - 2500
10. Lifting Equipment
    10.1 Hydraulic Mobile Crane 20 tons 1
    10.2 Crane-Mounted Truck 6 tons 1
    10.3 Folk Lift Truck 5 tons 4
    10.4 Folk Lift Truck 3 tons 1
    10.5 Tower Crane 6 tons 70 mH, 42 m boom 1
    10.6 Tower Crane 9 tons 32 mH, 24 m boom 1
    10.7 Gantry Crane 10 tons 7mH x 25 m 2
    10.8 Winch 5 tons 5
    10.9 Winch 6 tons 5
    10.10 Manual Chain Block 12 tons 1
    10.11 Manual Chain Block 5 tons 20
    10.12 Manual Chain Block 1-3 tons 20
    10.13 Overhead Traveling Crane 5 tons 14m 1
    10.14 Overhead Traveling Crane 3 tons 10m 1
11. Transportation
    11.1 Pick Up Truck 2 tons 12
    11.2 Sedan Car - 4
    11.3 Trailer Truck 15 tons 8m 5
    11.4 Six-Wheel Truck 8 tons 3
    11.5 Ten-Wheel Truck 15 tons 1
